Premium High-Power DC Fast Charging Solutions for Global EV Markets
該 PowerMax 240–720kW All-in-One DC Fast Charging Station by 能量的輝煌 represents the next generation of high-performance electric vehicle charging solutions. Designed for commercial fleets, public charging hubs, highway rest areas, and industrial applications, this advanced DC fast charger delivers fast, safe, and reliable power for a wide range of electric vehicles, including cars, buses, trucks, and specialized EV fleets.
With rising demand for ultra-fast, high-capacity charging stations across North America, South America, and Europe, the PowerMax series is engineered to meet the diverse requirements of modern EV infrastructure. Its all-in-one architecture combines the host unit, power electronics, and user interface in a single compact enclosure, simplifying installation and reducing operational complexity.
The PowerMax DC fast charger is optimized for high-efficiency charging, with power conversion efficiency greater than 95%, ensuring minimal energy loss while delivering maximum throughput. Whether deployed in public fast-charging corridors, commercial fleet depots, or municipal transportation networks, it provides a scalable and future-proof charging solution.
技術規格
| Model | DC-240-F4 | DC-360-F6 | DC-480-F8 | DC-600-F10 | DC-720-F12 |
|---|---|---|---|---|---|
| 額定功率 | 240千瓦 | 360千瓦 | 480千瓦 | 600千瓦 | 720千瓦 |
| 輸出電壓 | DC 200–750V / 1000V | DC 200–750V / 1000V | DC 200–750V / 1000V | DC 200–750V / 1000V | DC 200–750V / 1000V |
| 輸入電流 | 0–480A | 0–720A | 0–960A | 0–1200A | 0–1440A |
| Output Current (DC 750V) | 5–600A | 5–900A | 5–1200A | 5–1500A | 5–1800A |
| Output Current (DC 1000V) | 5–800A | 5–1200A | 5–1600A | 5–2000A | 5–2400A |
| 輸入電壓 | 380VAC ±15% | ||||
| 輸入頻率 | 50 ±10Hz | ||||
| Feeding Method | Bottom in/out | ||||
| Equipment Size (mm) | 1000×800×2000 | 1000×800×2000 | 1000×800×2000 | 1300×1000×2200 | 1300×1000×2200 |
| Charging Cable Length | 5m | 5m | 5m | 5m | 5m |
| Accuracy | Level 1.0 | Level 1.0 | Level 1.0 | Level 1.0 | Level 1.0 |
| 效率 | ≥95% | ||||
| Human-Computer Interaction | LED Indicator | LED Indicator | LED Indicator | 7-inch color touch screen | 7-inch color touch screen |
| 充電模式 | Automatic / Fixed Battery / Fixed Amount | Automatic / Fixed Battery / Fixed Amount | Automatic / Fixed Battery / Fixed Amount | Automatic / Fixed Battery / Fixed Amount | Automatic / Fixed Battery / Fixed Amount |
| Charging Method | Scan code / VIN / Swipe card (limited) / Password (maintenance) | ||||
| 防護等級 | IP54 | ||||
| Working Environment | Altitude ≤2000m; Temp -20°C~+50°C | ||||
Intelligent All-in-One Charging Technology
The PowerMax series incorporates cutting-edge power electronics and intelligent control systems to ensure fast, stable, and reliable charging. The LED indicator system or optional 7-inch full-color touchscreen interface provides intuitive real-time feedback for both operators and end-users.
Designed for commercial and industrial EV charging applications, the PowerMax series supports multiple charging modes including:
Automatic Charging: Optimized energy management and smart charging profiles.
Fixed Battery Charging: Targeted charging for specific battery capacities.
Fixed Amount Charging: Precise charging for controlled energy delivery, suitable for fleet management and billing.
This flexibility makes the PowerMax series ideal for fleet depots, public charging stations, highway fast-charging corridors, and municipal charging networks.
Superior Safety, Durability, and Environmental Adaptability
Energy Splendor prioritizes safety and durability in all PowerMax charging stations. The IP54-rated enclosure ensures protection against dust, water splashes, and harsh environmental conditions. The station operates efficiently in extreme temperature ranges from -20°C to +50°C and at altitudes up to 2000 meters, making it suitable for diverse geographic regions from North American highways to South American urban centers and European highlands.
Additional protective features include:
Overcurrent and overvoltage protection
Short-circuit and leakage detection
Intelligent cooling systems (air or liquid cooling depending on model)
Automated safety shutdown for emergency scenarios
These features guarantee reliable, long-term operation, minimizing downtime and maintenance costs.

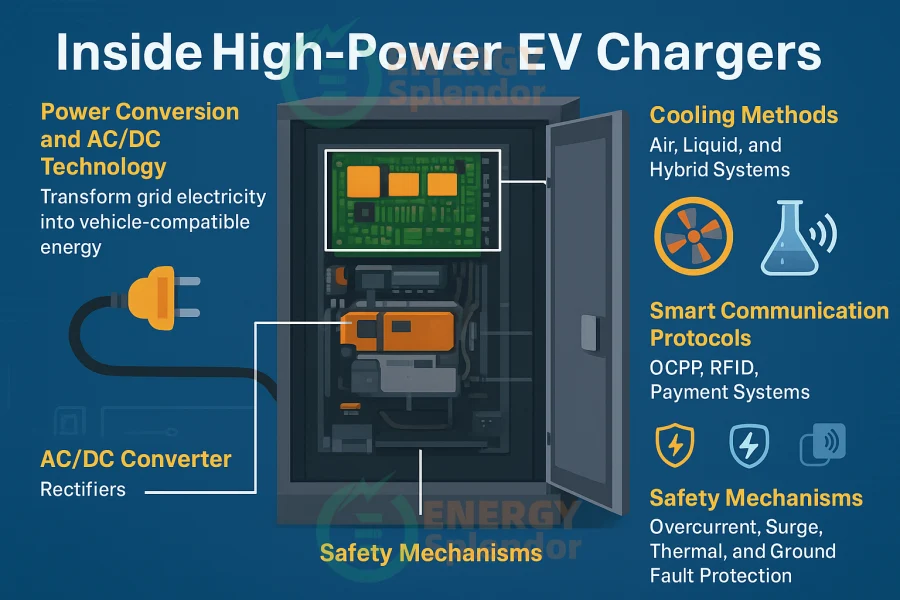

了解更多：高功率電動車充電器內幕：60–240kW 充電站如何運作
Flexible Connectivity & Payment Options
The PowerMax series offers versatile networking and payment solutions, enabling seamless integration with modern charging networks:
Ethernet & 4G Communication: Optional connectivity ensures remote monitoring, management, and diagnostics.
Multiple Payment Methods: Scan QR codes, input VIN codes, use swipe cards (limited), or apply maintenance passwords for authorized operators.
Fleet Management Integration: Supports energy monitoring, usage tracking, and automated billing for commercial fleets and municipal operators.
This connectivity ensures compatibility with global EV network standards and OCPP-compliant systems, making it suitable for smart city projects and multi-station charging networks.
主要功能與優勢
1. High Power & Rapid Turnaround
With output ranging from 240千瓦 to 720kW, the PowerMax series is designed for 超快速充電, reducing vehicle downtime and improving operational efficiency for commercial and public charging facilities.
2. All-in-One Compact Design
The fully integrated design simplifies installation, reduces footprint, and lowers infrastructure costs, making it ideal for space-constrained urban environments.
3. Intelligent User Interface
LED indicators or a 7-inch touchscreen provide intuitive operation, real-time charging status, and easy navigation for both operators and EV drivers.
4. Multiple Charging Modes & Smart Energy Management
Support for automatic, fixed battery, and fixed-amount charging provides flexibility for fleet operators, commercial facilities, and public stations.
5. Global Safety & Environmental Standards Compliance
Designed to meet international safety standards and withstand extreme environmental conditions, ensuring long-lasting performance in any region.
6. OEM/ODM & Wholesale Support
Energy Splendor offers direct factory supply for distributors, commercial operators, and fleet managers, supporting customization and scalable deployment for North America, South America, Europe, and beyond.
7. Future-Ready & Scalable
The modular architecture of the PowerMax allows upgrades for higher power output or additional networking and smart charging features, ensuring adaptability for evolving EV charging requirements.
Applications Across Global Markets
The PowerMax 240–720kW All-in-One DC Fast Charging Station is suitable for a variety of commercial and industrial scenarios:
Public Charging Hubs: Urban fast-charging stations for passenger EVs and shared mobility fleets.
Highway Rest Areas: Ultra-fast chargers for intercity travel and long-distance EV commuters.
Commercial Fleet Depots: Efficient charging for taxis, delivery vans, buses, and logistics fleets.
Municipal & Government Projects: Charging infrastructure for public service vehicles, buses, and municipal EV initiatives.
Industrial Facilities: Power supply for EV-powered machinery and fleet vehicles in large manufacturing or logistics sites.
Smart City & Renewable Energy Integration: Seamless integration with solar, wind, or energy storage systems for sustainable EV charging.
Why Choose Energy Splendor PowerMax DC Fast Chargers
Energy Splendor is a leading manufacturer of high-performance EV charging stations, offering factory direct pricing, full OEM/ODM support, and global shipping. Our commitment to quality, innovation, and customer satisfaction ensures that each PowerMax charger delivers maximum efficiency, safety, and reliability.
By choosing PowerMax chargers, operators gain:
Reduced operational costs through high-efficiency power conversion
Flexible installation and easy maintenance
Adaptability to future EV technologies and battery standards
Comprehensive technical support and after-sales service
With Energy Splendor PowerMax Level 3 DC Fast Charging Stations, EV operators and commercial fleet managers can meet today’s growing demand for fast, reliable, and scalable 第 3 級電動車充電器, positioning themselves at the forefront of the EV revolution.
