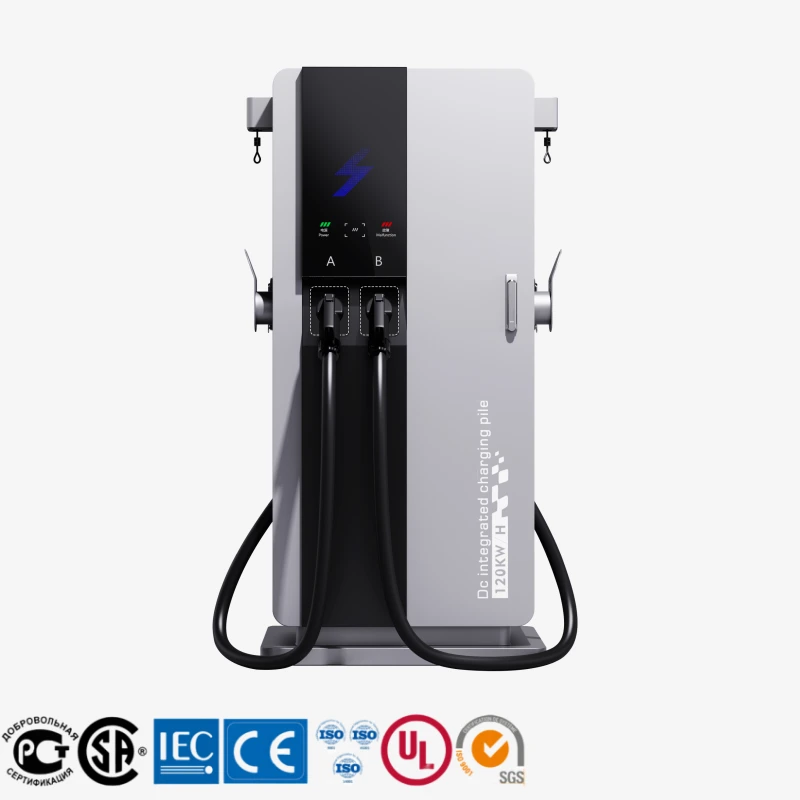

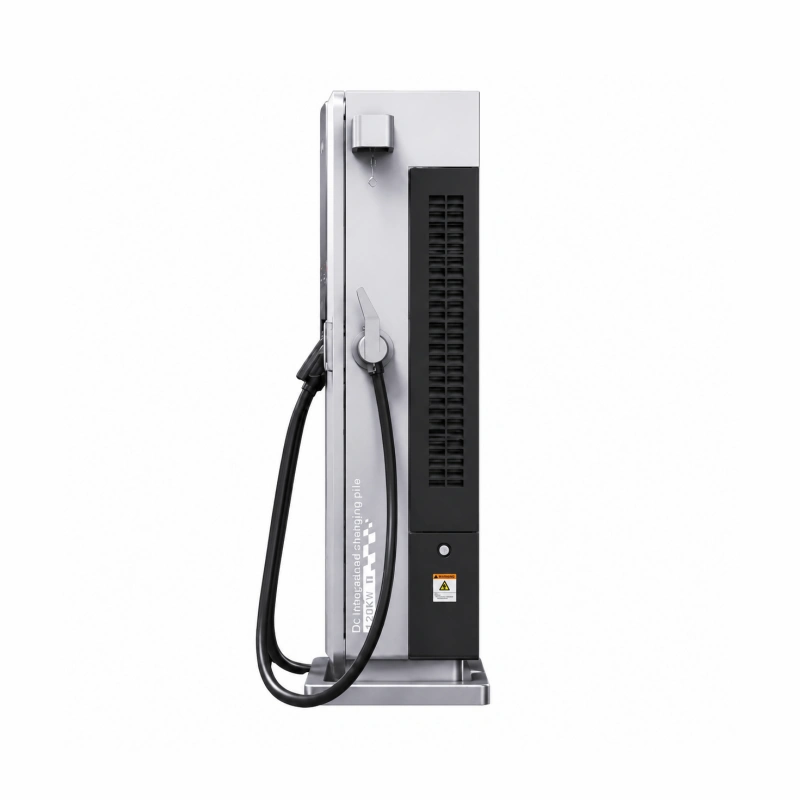

120kW Dual Port DC Fast Charging Station for Commercial EV Infrastructure
The 120kW Floor Mounted Dual Connector DC Fast EV Charger is a high-performance Level 3 charging solution designed for commercial fleets, public charging networks, and large-scale EV infrastructure projects.
Featuring dual charging connectors, intelligent power distribution, and OCPP-based smart management, this DC fast charger enables efficient charging for multiple electric vehicles while maximizing station utilization.
With a rugged outdoor design, advanced safety protection, and flexible network connectivity, it is ideal for fleet depots, logistics centers, commercial parking facilities, highway charging stations, and integrated Solar + BESS + EV Charging energy systems.
Product Highlights
High Power DC Fast Charging
- Up to 120kW charging output
- Supports fast vehicle charging and reduced charging downtime
- Suitable for high-frequency commercial charging operations
Dual Connector Charging
- Two charging ports for simultaneous EV charging
- Intelligent power sharing according to vehicle demand
- Improves charging efficiency and station profitability
Smart Charging Management
- OCPP 1.6J / OCPP 2.0 compatible
- Remote monitoring and operation management
- Charging data analysis and OTA software updates
Reliable Outdoor Operation
- Industrial-grade floor-mounted enclosure
- Designed for commercial outdoor environments
- Multiple electrical protection systems for safe operation
Flexible Energy Integration
- Compatible with EV charging management platforms
- Supports EMS, solar PV, and battery storage integration
- Suitable for scalable charging hub deployment
Technical Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Product Type | Floor Mounted DC Fast EV Charger |
| Charging Power | 120kW |
| Charging Level | Level 3 DC Fast Charging |
| Number of Charging Ports | 2 Ports |
| Charging Connector | CCS1 / CCS2 / CHAdeMO / GB/T Optional |
| Output Voltage Range | 200VDC – 1000VDC |
| Maximum Output Current | Up to 200A / 250A Optional |
| Input Voltage | 400VAC / 480VAC |
| Input Frequency | 50Hz / 60Hz |
| Efficiency | ≥95% |
| Power Factor | ≥0.99 |
| Charging Mode | Dual Charging with Dynamic Power Allocation |
| Communication Protocol | OCPP 1.6J / OCPP 2.0 |
| Network Connection | Ethernet / 4G / WiFi Optional |
| Display | 7-inch Touchscreen LCD Optional |
| User Authentication | RFID / Mobile APP / Cloud Platform |
| Remote Management | Monitoring, Diagnostics, OTA Updates |
| Installation | Floor Mounted |
| Protection Rating | IP54 / IP55 Optional |
| Operating Temperature | -30°C to +50°C |
| Cooling System | Intelligent Air Cooling |
| Emergency Stop | Supported |
| Safety Protection | Over Voltage, Over Current, Short Circuit, Leakage, Surge Protection |
| Certification | CE / IEC 61851 / IEC 62196 Optional |
Main Applications
Fleet Charging
- Electric delivery fleets
- Logistics vehicles
- Company vehicle fleets
- Taxi and rental fleets
Commercial Charging Stations
- Shopping malls
- Office buildings
- Hotels and resorts
- Parking facilities
Public Charging Networks

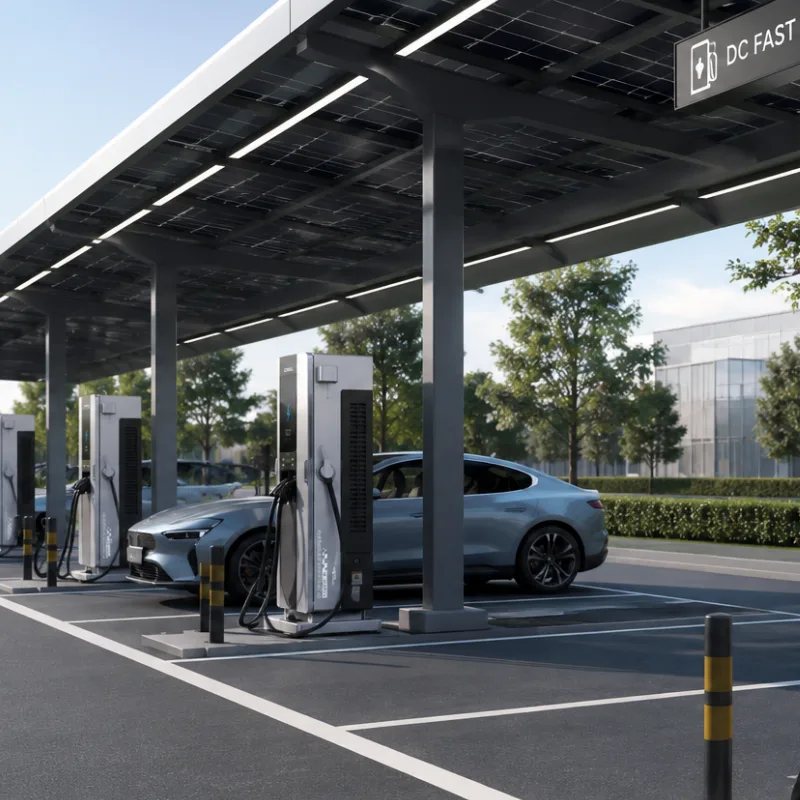

- Highway charging stations
- Urban fast charging hubs
- Municipal EV infrastructure
Industrial Energy Solutions
- Industrial parks
- Warehouses
- Manufacturing facilities
- Solar + Storage + EV charging projects
Why Choose Splendor Energy 120kW DC Fast Charger
✔ High-power charging for commercial EV applications
✔ Dual connector design for higher utilization
✔ Smart OCPP connectivity for charging networks
✔ Reliable operation in outdoor environments
✔ Compatible with renewable energy integration
✔ Scalable solution for future EV infrastructure expansion
